4,5 Inch ATEX Resilient Mobile Handheld T9Keyboard for ATEX Zone 2

System:CPU ARM Cortex A73 octa-core, Memory 8G + 128G；
Display:4.5 inch IPS/AFFS 960*540 QHD industrial 500nit Sunlight Readable;
Certification: ATEX 21 Zone explosion-proof,II 2G Ex ib IIB T4 Gb;
Durability: Rugged corners, IP65 waterproof and dustproof, MIL-STD-810G certified;
Communication: Optional 3G/4G, WiFi, Bluetooth,support GPS+Beidou+Glonass+AGPS+SBAS;

Download

Get A Quote

Product Detail

S50EX 4.5 inch Sunlight Readable MIL-810G ATEX Explosion Proof PDA& Portable

S50EX 4.5 inch Sunlight Readable MIL-810G ATEX Explosion Proof PDA& Portable1

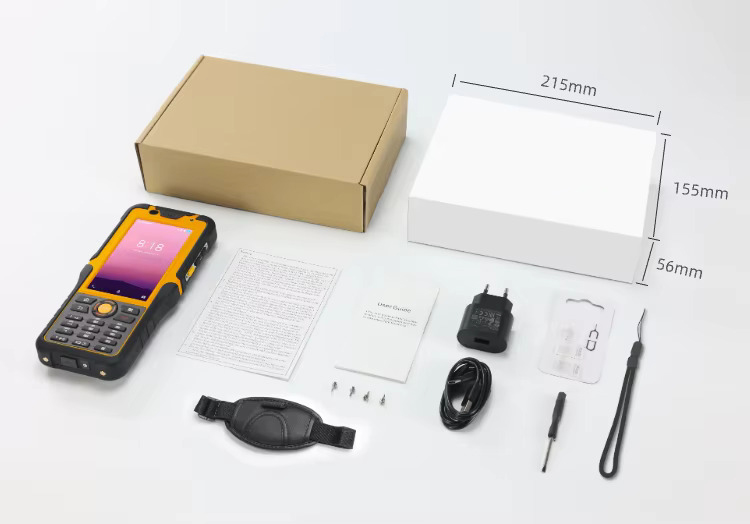

S50EX 4.5 inch Sunlight Readable MIL-810G ATEX Explosion Proof PDA& Portable2

S50EX 4.5 inch Sunlight Readable MIL-810G ATEX Explosion Proof PDA& Portable3

S50EX 4.5 inch Sunlight Readable MIL-810G ATEX Explosion Proof PDA& Portable4

S50EX 4.5 inch Sunlight Readable MIL-810G ATEX Explosion Proof PDA& Portable5

S50EX 4.5 inch Sunlight Readable MIL-810G ATEX Explosion Proof PDA& Portable6

S50EX 4.5 inch Sunlight Readable MIL-810G ATEX Explosion Proof PDA& Portable7

S50EX 4.5 inch Sunlight Readable MIL-810G ATEX Explosion Proof PDA& Portable8

Hardware

Communications & Networking

CPU

ARM Cortex A73 octa-core (2.0GHz )

Phone Call

GSM /WCDMA/CDMA 1X/VoLTE

GPU

ARM Mali-G72 MP3

GSM/CDMA 1X/EDGE/GPRS/WAP

RAM

8GB

2G Band

GSM（B2/3/5/8）

Internal Memory

128GB ROM

WCDMA 3.75G (HSDPA + 42.2Mbps, HSUPA +11.5Mbps), EVDO

External Memory

Micro SD card(T-FLASH card), max 256GB

3G Band

WCDMA（B1/2/5/8）,Evdo: BC0/BC1 CDMA: BC0/BC1

Main Camera

13.0MP(AF) with flash led

FDD: 150Mbps down, 50Mbps UP TDD : 150Mbps downlink, 50Mbps uplink

Sub Camera

N/A

4G Band

TD-LTE（B38/39/40/41）；FDD LTE（B1/2/3/4/5/7/8/12/17/20/28）

Battery

5000mAh (Replaceable battery)

WI-FI

Dual-band WIFI (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac

Display

4.5 inch IPS/AFFS 960*540 QHD industrial 500nit Sunlight Readable

5.0 Low Energy (LE)

Touch Panel

Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen

Industrial & Reliability Design

IO/Sensor/Navigation

Shake-proof

1-19Hz/1.0mm; 19-200Hz/1.0g

SIM Card

1.8/3.3V SIM card

Dropproof /IK

MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05

TF Card

Micro SD card (T-FLASH card); max 256GB

Waterproof

Class 7 ( IEC 60529 )

Headphone

3.5mm (CTIA）

Dustproof

Class 6 ( IEC 60529 )

Charging interface

Type-C & 2pin pogo pin

Operating temperature

-20°C to 55°C

Data interface

USB Type-C(OTG)*1

Storage Temperature

-40°C to 80°C

Gravity sensor

support

Reliability

MTBF>5000h; MTTR<0.5h

Motion sensor

support

5% to 95%

Direction Sensor

support

Operating Altitude

Max: 4,500 m（15,000 feet）

Magnetic Field Sensor

support

Certification/OS/Software

Gyro sensor

support

Certification

3C/FCC/CE/ROHS/IP67 (IEC 60529)

Rotation Vector

support

Language

English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified， Chinese, Chinese Traditional, etc

Light-sensor

support

Acceleration sensor

support

Charger

5.0V 2A-10W

Android 11/13 (Continuous updates)

Navigation

GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m)

Ex-Marking

II 2G Ex ib IIB T4 Gb

Appearance

Certificate NO.

ECM 22 ATEX-B DU54

Size

197*92*27mm（L×W×H）

Package/Warranty terms

Weight

420g

Warranty

24 months

Color & Material

Black&yellow (PC+ABS)+TPU

Package

USB cable/Charger 5V 2A/Introduction manual/Screen protector/Packing box

NFC

UHF RFID

Protocol standard

ISO14443A/B, ISO15693, NFC

Air interface protocol

EPC global UHF Class 1 Gen 2 / ISO 18000-6C

Label standard

M1(S50, S70), CPU, NFC

Operating spectrum range

902Mhz – 928Mhz 865MHz – 868MHz (Optional)

Read-write distance

2-5cm

Data Collection

Output range

0-26bdm

Scanning engine

E20 Barcode Module

Output accuracy

+/- 1dB

QR Code, Micro QR, Data Matrix, PDF417, Micro PDF417, Aztec, Maxicode, Hanxin code,
Dotcode, Composite.

Output power level

+/- 0.2dB ,The label is sensitive and stable.

Reading distance

≥1.8m (E41 tag)

Code 128 ( ISBT 128, AIM 128, GSI 128 ), EAN-13, EAN-8, UPC-E, UPC-A, ISBN, ISSN, Code11,
Interleaved 2 of 5, Code39, Code93, Code32, Codabar, Matrix 2 of 5, Industrial 25, IATA25,
MSI Plessey, GSI DataBar, Plessey, Febraban.
